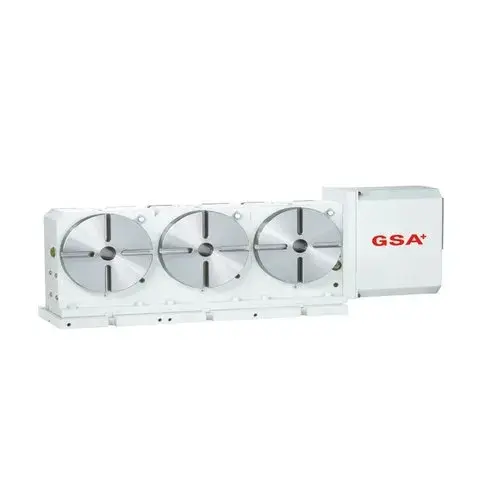

New Innova by GSA CNC-200R-3W(2W) | Rotary Tables
ConditionNew
1 available
New
Elevate your machining precision with the GSA CNC-200R-3W(2W) Rotary Table. Featuring a 200 mm diameter, 0.001° increment, and 50 kg•m hydraulic clamp force, this professional-grade equipment excels in sophisticated operations. New condition, ready to enhance your workflow.
Table Dia (mm/inch) 200 / 7.87
Center Height in Vertical (mm / inch) 190 / 7.48
Table Height in Horizontal (mm/ inch) 290 / 11.42
Over all Height in Vertical Without Motor Cover (mm / inch) 315 / 12.40
Thru-Hole Dia (mm / inch) 35H7/ 1.38H7
Width of T-slot (mm / inch) 12H7/ 0.47H7
Width of Guide Block (mm / inch) 18h7/ 0.71H7
Gear Ratio 90:1
Min. Increment(degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 22.2
Pneu. clamp force (kg•m) (P:5kg / cm2) 25
Hydro. clamp force (kg•m) (P:20kg / cm2) 50
Indexing Accuracy Class (sec.) 20"
Double productivity, decreasing machining-time and cost.
Multi-Points pneumatic brake system offers superior clamp torque, insures smooth machining without deflection under a heavy load.
Increasing machining speed, reduce the time on rotating ATC and workpiece loading-unloading.
