Innova by GSA
Innova by GSA - Precision Rotary Tables for Modern Machining
At Innova, we partner with builders who share our obsession with precision—and GSA has been doing just that since 1978. As one of Taiwan’s most respected rotary table manufacturers, GSA is known for engineering accuracy, reliability, and performance into every model. Together, Innova by GSA delivers rotary tables designed for today’s high-speed, high-precision machining environments.
Zero-Backlash Rotary Tables Built for Performance
GSA’s CNC Worm Wheel and RCT Roller Cam Systems redefine what rotary motion can be. These tables achieve rotational accuracy within ±10 arc seconds and repeatability better than ±4 arc seconds—without the clamping and unclamping delays of traditional hydraulic systems. The result is faster positioning, higher throughput, and distortion-free performance that lasts for years.
The exclusive zero-backlash system eliminates mechanical play, maintaining rigidity under heavy loads and ensuring consistent precision even after extended operation. No kickback. No energy-hungry hydraulics. Just smooth, repeatable motion that boosts machining efficiency.
Models Available Through Innova
Each model in the Innova by GSA lineup reflects GSA’s commitment to zero-backlash accuracy, long-term rigidity, and mechanical simplicity that delivers lasting precision across every size of machining center.
Our offering covers everything from compact 4th-axis rotary tables to large trunnion systems capable of full 5-axis machining. Each series is engineered to enhance productivity, reduce maintenance, and bring dependable accuracy to your process.
CNC Series - Worm Wheel
The CNC Series combines compact design with exceptional rotational accuracy for vertical or horizontal machining centers. Featuring GSA’s zero-backlash RollerDrive system, these tables deliver ultra-fast indexing and repeatability within ±4 arc-seconds. Ideal for production work that demands both speed and precision.
Standard Type Ranging from 320mm to 800mm CNC-320R | Rear Back Mounted Motor Ranging from 170mm to 250mm CNC-170RB | Multi-Table System Ranging from 120mm to 400mm, 2 to 4 tables CNC-120R-2W (3W) (4) |
RCT Series - Roller Cam

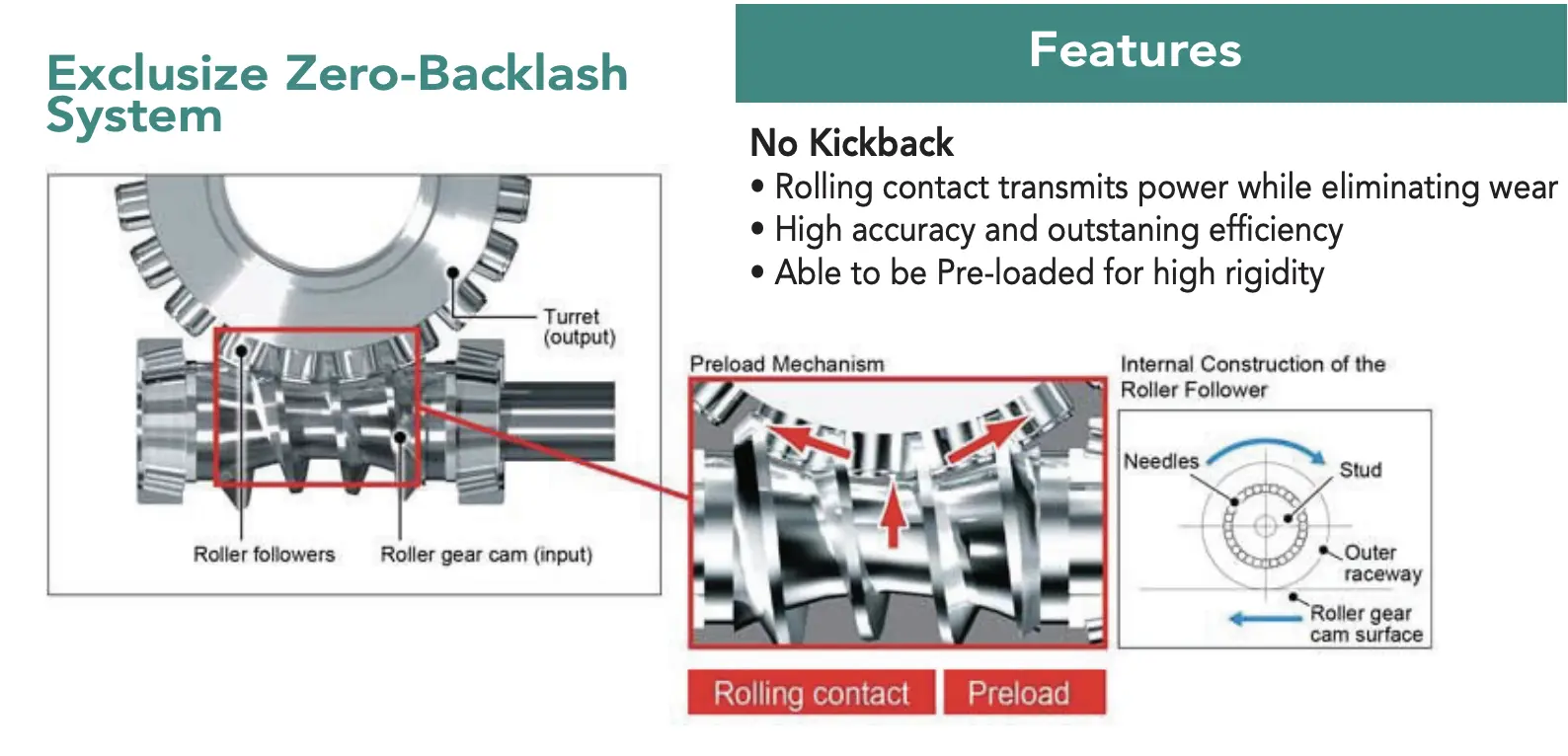

The RCT Roller Cam Series is engineered to meet the high-speed & precision requirements of modern machine tools. These roller-cam driven tables use pre-loaded rolling contact for distortion-free power transmission—no kickback, no wear, and virtually no maintenance. The result is sustained accuracy and torque that stays consistent year after year.
The zero-backlash technology delivers exceptional prevision and rigidity, achieving a rotational accuracy of ±10 arc seconds and repeatability better than ±4 arc seconds.
Thanks to its mechanically rigid, zero-backlash design, the Roller Drive system operates without the need for a clamping mechanism. This removes clamp and unclamp cycle times and eliminates the energy consumption typical of hydraulic systems.
This distortion-free performance, combined with the no-clamp design, enables ultra-fast positioning, resulting in increased productivity.
RCT-170R | RCT-200R | RCT-250R | RCT-320R | RCTT-350RS (RB)
