New Innova by GSA CNC-120R | Rotary Tables
ConditionNew
New

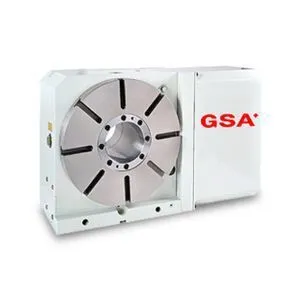

GSA CNC-120R Rotary Table, new condition, offers precision with a 120 mm diameter, 0.001° indexing, and 33.3 RPM max. Features multiple servo motor types and robust clamping forces. Ideal for enhancing machining precision and versatility.
ITEM / MODEL CNC-120R
Table Dia (mm/inch) 120 / 4.72
Center Height in Vertical (mm / inch) 115 / 4.53
Table Height in Horizontal (mm / inch) 170 / 6.69
Over all Height in Vertical Without Motor Cover (mm / inch) 193 / 7.60
Thru-Hole Dia (mm / inch) 30H7 / 1.18H7
Width of T-slot (mm / inch) 10H7 / 0.39H7
Width of Guide Block (mm / inch) 14h7 / 0.55h7
Servo motor type MELDAS HF-75T
FANUC α2 i
SIEMENS 1FK7042
HEIDENHAIN QSY96G
Gear Ratio 0.083333333
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 33.3
Pneu. clamp force (kg•m) (P:5kg / cm2) 12
Hydro. clamp force (kg•m) (P:20kg / cm2) 24
A combination of high precision bronze / nickel worm wheel and case hardened steel worm screw ensures long term indexing accuracy.
Dual lead worm wheel/worm shaft which allowable easy backlash adjustment.
Double bearing design suitable for heavy cutting.
One piece of faceplate and spindle design which offer rigid construction.
Low Gear ratio design (90:1) which offer high speed feed rate.
Large thru hole design which allowable large work piece going thru spindle.
