New Innova by GSA RCT-200R | Rotary Tables HD
ConditionNew
1 available
New

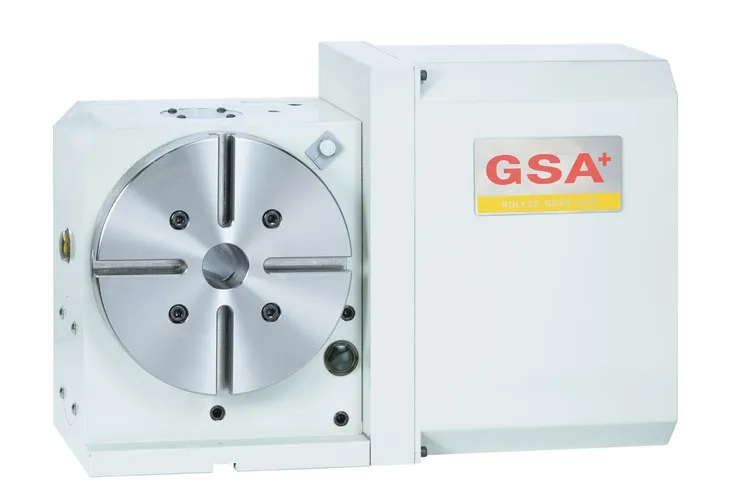

New GSA RCT-200R rotary table, 200 mm diameter, offers high speed, rigidity, and non-backlash performance. Precision indexing with 0.001° unit and 1:40 gear ratio. Supports max load of 150 kg horizontally, ensuring reliability in demanding applications.
Table Dia (mm/inch) 200
Center Height in Vertical (mm / inch) 160
Table Height in Horizontal (mm / inch) 189
Over all Height in Vertical Without Motor Cover (mm / inch) 265
Thru-Hole Dia (mm / inch) 35H7 /35
Width of T-slot (mm / inch) 12H7
Width of Guide Block (mm / inch) 18h7
Servo motor type MELDAS HF-104T
FANUC α4 i / 4000
SIEMENS 1FK7060
HEIDENHAIN QSY116C
Gear Ratio 1:40
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 50
Pneu. clamp force (kg•m) (P:5kg / cm2) 25
Hydro. clamp force (kg•m) (P:20kg / cm2) 50
Indexing Accuracy Class (sec.) 20"
Repeatability (sec.) 4"
Max. Machining Force (kg•m) 25
N.W. (kgs) 80
Max. Load Vertical W=75 kg
Horizontal W=150 kg
Max. Radial Load Picture F=800 kg
Picture FxL=45 kg•m
Picture FxL=40 kg•m
High Speed
High Rigidity
Non-Backlash
