New Innova by GSA RCT-170R | Rotary Tables HD
ConditionNew
New

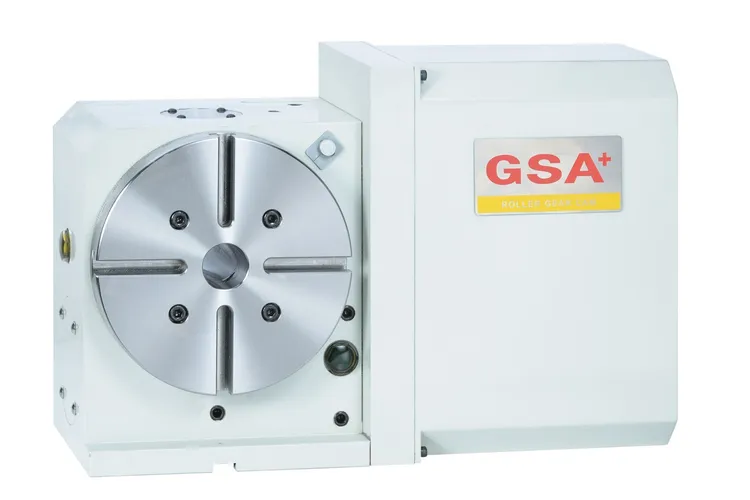

Discover the GSA RCT-170R, a high-precision new rotary table. With a 170 mm diameter and powerful servo motor options, it delivers optimal performance with 0.001° indexing accuracy, supporting vertical loads up to 75 kg and horizontal up to 150 kg.
Table Dia (mm/inch) 170
Center Height in Vertical (mm / inch) 135
Table Height in Horizontal (mm / inch) 189
Over all Height in Vertical Without Motor Cover (mm / inch) 240
Thru-Hole Dia (mm / inch) 35H7 /35
Width of T-slot (mm / inch) 12H7
Width of Guide Block (mm / inch) 18h7
Servo motor type MELDAS HF-104T
FANUC α4 i / 4000
SIEMENS 1FK7060
HEIDENHAIN QSY116C
Gear Ratio 1:30
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 66.6
Pneu. clamp force (kg•m) (P:5kg / cm2) 25
Hydro. clamp force (kg•m) (P:20kg / cm2) 50
Indexing Accuracy Class (sec.) 20"
Repeatability (sec.) 4"
Max. Machining Force (kg•m) 25
N.W. (kgs) 65
Max. Load Vertical W=75 kg
Horizontal W=150 kg
Max. Radial Load Picture F=800 kg
Picture FxL=45 kg•m
Picture FxL=40 kg•m
