New Micro HBM HBM-3T | HBM - Horizontal Boring Mills - Column
ConditionNew
New

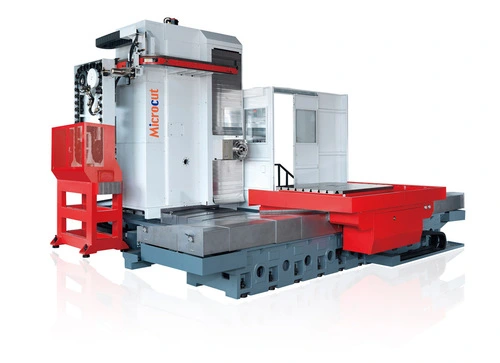

HBM-3T travelling column boring and milling center with powerful gear box driven spindle dia. 110 mm provides high-speed with excellent power and torque. The machine's flexibility makes it useful for a variety of workpieces with loading capacity up to 8000kgs. The machine can be equipped with a wide selection of technological accessories that significantly expands the usability of it. Either Fanuc, Heidenhain or Siemens controls can be selected
X axis table cross travel inch 78.74(std); 118.11(opt)
Y axis headstock vertical inch 78.74
Z axis column long travel inch 55.12(std); 66.93(opt)
Quill diameter inch 4.33
W axis (quill) travel inch 21.65
Spindle power kW "Fanuc:15/18.5
Siemens:22/33 (opt.)"
Max. spindle speed rpm 35-3000
Spindle gear range 2 step (auto)
Spindle Torque
Table size inch 55.12 x 62.99
Rotary Table indexing degree degree
Table Rotation Speed rpm
Max. table loading capacity kg 8000
Rapid feed (X/Y/Z/W) ipm 393.70/393.70/393.70/236.22
ATC tool number 40T
Machine weight lbs 81,571(X4,409/Z3,086)
Standard Features:
Spindle oil cooler
CTS spindle
Coolant system
Auto lubrication system
MPG box
Heat exchanger
Optional Features:
ATC 40 stations
Right angle milling head
Universal milling head
Facing head
Right angle block
Spindle extension sleeve
Power transformer
Coolant through spindle device
Table guard for CTS
Safety guard for operator
Air conditioner
Tool setting probe
Work piece probe
