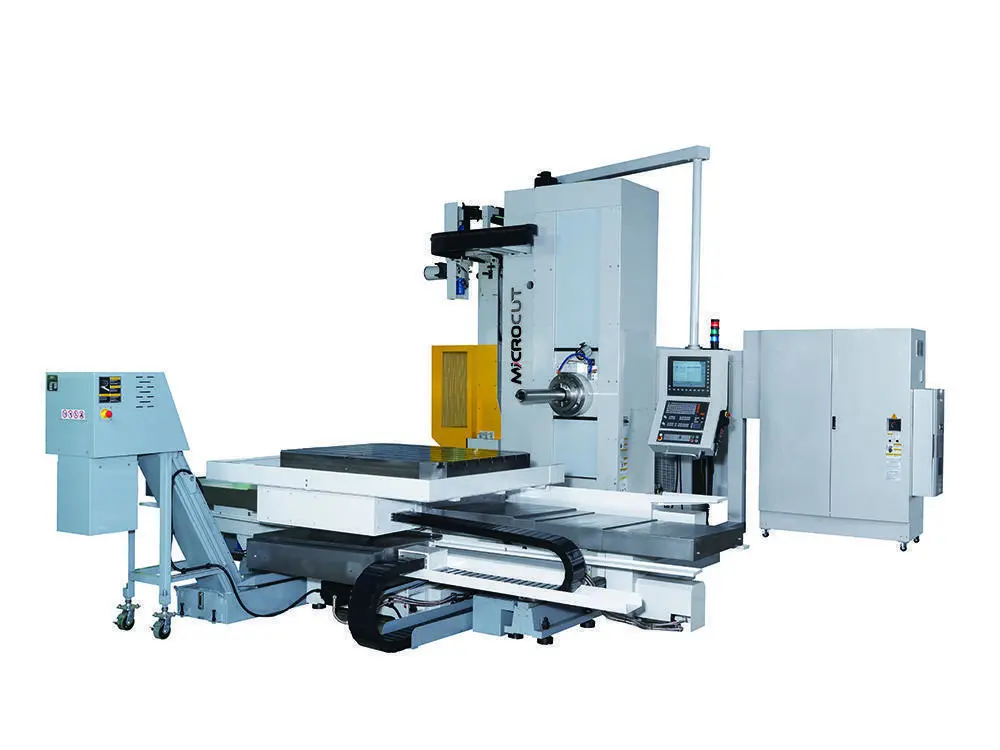

New Micro HBM HBM-4 | HBM - Horizontal Boring Mills - Table
ConditionNew
New
HBM-4, the boring and milling machine is provided with large working table for heavy loading capacity. Generous dimensioning of the hydraulic clamping sytem while enables the capacity for heavy cutting. Super rigid & compact Spindle headstock with cooling & lubrication oil supplied to all the thermal source in Spindle head to minimize its thermal expense.
Spec Unit HBM-4
X axis table cross travel inch 86.61
Y axis headstock vertical inch 62.99
Z axis table long travel inch 62.99
Quill diameter inch 4.33
W axis (quill) travel inch 21.65
Spindle power kW 15 / 18.5 (std)
Max. spindle speed rpm 35-3000
Spindle torque ft/lbs 545.8 / 636.5 (std)
Spindle gear range 2 step (1:2 / 1:6)
Table size inch 49.21 x 59.06 (std)
Rotary table indexing degree degree 1° (std) / 0.001° (std)
Table rotation speed rpm 5.5 (1°) / 2 (0.001°)
Max. table loading capacity lbs 11023
Rapid feed (X/Y/Z/W) ipm 472.44/472.44/472.44/236.22
ATC tool number 28/60
Machine weight lbs 49604
Standard:
Spindle oil cooler
Spindle vibration monitoring
Coolant system
Auto lubrication system
MPG box
Heat exchanger
Optional:
ATC 28/40/60 stations
Right angle milling head
Universal milling head
Facing head
Right angle block
Spindle extension sleeve
Linear scale for X/Y/Z axes (Fagor or Heidenhain)
Power transformer
Coolant through spindle device
Table guard for CTS
Safety guard for operator
Air conditioner
Tool setting probe
Work piece probe
