New Micro HBM HBM-3 | HBM - Horizontal Boring Mills - Table
ConditionNew
New

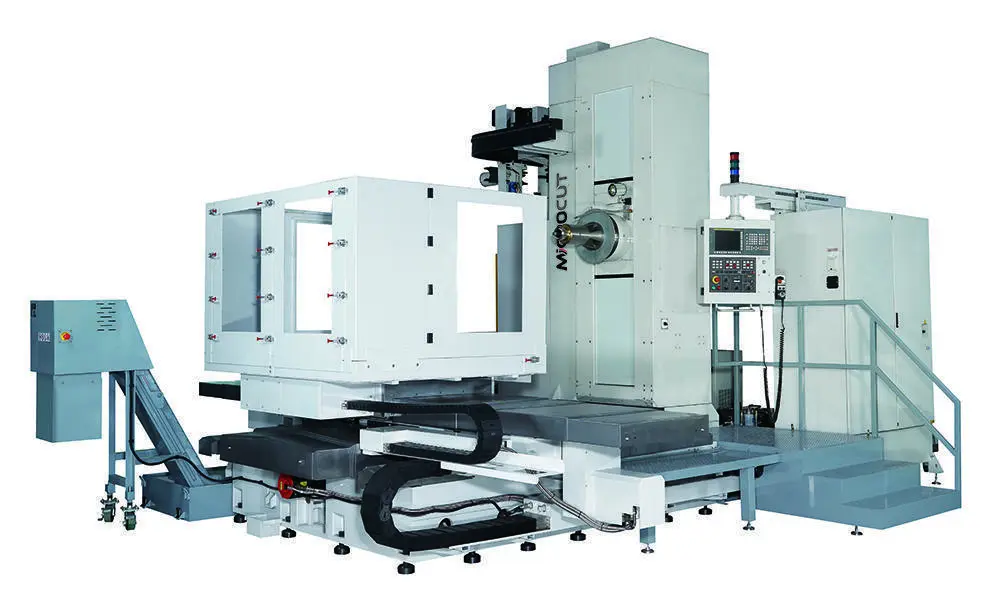

The boring and milling machine, HBM-3 is capable of both high-speed mold processing and low speed with high torque. This model provides 3000rpm ISO50 spindle, automatic 2 steps speed changer and high torque. The offering travel range includes 2200mm of X travel, 1600mm of Y and Z travel, and 550mm of W axis. The high rigidity and stability construction offers a maximum productivity and builds the best profitable equipment.
Spec Unit HBM-3
X axis table cross travel inch 78.74
Y axis headstock vertical inch 66.93
Z axis table long travel inch 55.12
Quill diameter inch 4.33
W axis (quill) travel inch 21.65
Spindle power kW 15 / 18.5 (std)
Max. spindle speed rpm 35-3000
Spindle torque ft/lbs 545.8 / 636.5 (std)
Spindle gear range 2 step (1:2 / 1:6)
Table size inch 49.21 x 49.21 (std)
Rotary table indexing degree degree 1° (std) / 0.001° (std)
Table rotation speed rpm 5.5 (1°) / 2 (0.001°)
Max. table loading capacity lbs 11023
Rapid feed (X/Y/Z/W) ipm 590.55/590.55/472.44/236.22
ATC tool number 28/60
Machine weight lbs 56218
Standard:
Spindle oil cooler
Spindle vibration monitoring
Coolant system
Auto lubrication system
MPG box
Heat exchanger
Optional:
ATC 28/40/60 stations
Right angle milling head
Universal milling head
Facing head
Right angle block
Spindle extension sleeve
Linear scale for X/Y/Z axes (Fagor or Heidenhain)
Power transformer
Coolant through spindle device
Table guard for CTS
Safety guard for operator
Air conditioner
Tool setting probe
Work piece probe
