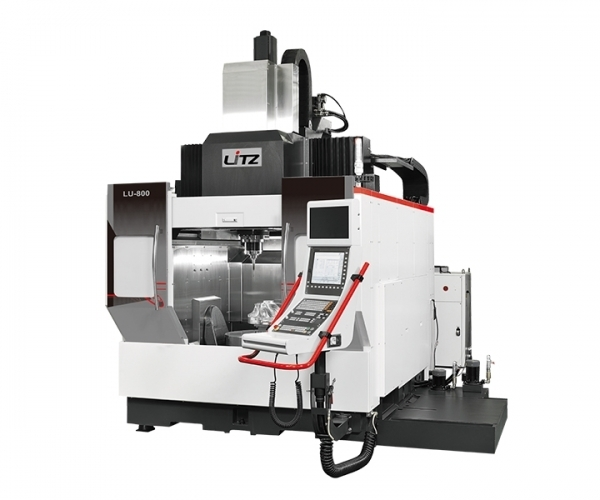

LITZ HITECH LU-800B - 5-Axis Vertical
ConditionNew
New
The Litz LU-800 gantry-type 5 axes machining center is built & designed with high rigidity mechanism and high precision in mind. To achieve high rigidity, the LU-800 employs the U-Shape base, with dual sides
A axis support and high quality rotary table C axis. It is also equipped with 12000RPM direct drive spindle, heavy duty roller-type linear guideway and 3 axes linear scales.
Travel
X-Axis Travel mm 800
Y-Axis Travel mm 900 + 330
Z-Axis Travel mm 620
Spindle Nose To Table Surface mm 100 - 720
Worktable Dimensions mm Ø 800
Worktable Load kg 1000
Feed System
( X / Y / Z ) Rapid Feed m / min 48 / 48 / 48
( X / Y / Z ) Cutting Feed m / min 0.001 - 20
Rotary Axis
A-Axis Rotation Angle degree ± 120∘
C-Axis Rotation Angle degree 360∘
A-Axis Max. Speed rpm 75
C-Axis Max. Speed rpm 100
Spindle
Spindle Transmission Type Direct Drive
Spindle Speed (max.) rpm 12000
Spindle Power (Continuous/S6-40% ) kw ( HP ) 17/23 kw
Max. Torque Nm 240
Tool Handle Spec. # 40 BBT / CAT / DIN
ATC
Magazine Capacity set 32T
Tool Change Method DRUM
Max. Tool Diameter/ With Adjacent Tool mm Ø 75 / Ø 125
Max. Tool Length mm 300
Max. Tool Weight kg 7
Control
Control TNC-640
Chip Conveyor Chain Type
Machine Occupancy (L X W Xh) mm 4528x2240x3605
Machine Weight kg 21000
