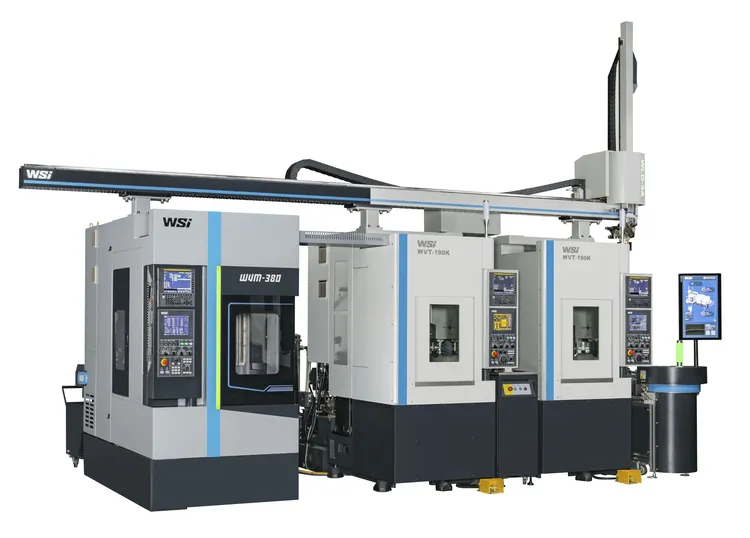

WSI WVM-380UK 5-Axis Vertical Mill
ConditionNew
New
ADVANCED DESIGN CONCEPT - A New Standard in 5 Axis Machine Performance. A Combination of Intelligence and Practicality
MODEL WVM-380UK
SPINDLE
Spindle nose type BBT 40 / HSK 63
Spindle drive Direct drive
Max. spindle speed 12000 (15000) rpm
MOTOR
MOTOR 5.5 / 7.5 / 11 / 15 kw
TRAVEL
X/Y/Z 380 / 400 / 460 mm
B/C ±120° / 360°
TABLE
Table size Ø320 mm
Max. swing Ø400 mm
Max. load Horiz. (kg) 150 kg
Tilt (kg) 85 kg
TOOL CHANGER
Number of tools
Max. tool dia. (w/o adjacent tool) Ø60 / Ø100 mm
Max. tool length 270 mm
Max. tool weight 5 kg
OUTLINE DIMENTION
W x H x D 1400 x 2600 x 2880 mm
Weight 4600 kg
Standard Accessories
Fanuc OiMF plus controller
Chip conveyor
Intelligent HMI
Heat exchanger
Fully enclosed splashguard
Automatic lubrication pump
Work lamp
Oil fluid separator
Optional Accessories
High pressure CTS (50/70/105 bar)
Linear scale
Oil mist collector
Workpiece measuring system
Tool measuring system
Tool life management system
Air conditioner for electric cabinet
Air tight detection for workpiece
