WSI WVM-380U 5-Axis Vertical Mill

Have one to sell?
(814) 807-2113
marketing@innova-machinery.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Machining Centers (5-Axis or More)
Manufacturer:
WSI
Model:
WVM-380U
Condition:
Build To Order
Status:
For Sale

Description

ADVANCED DESIGN CONCEPT - A New Standard in 5 Axis Machine Performance. A Combination of Intelligence and Practicality

X14.96"379.98 mm
Y15.75"400.05 mm
Z14.17"359.92 mm
# Axis55
Power14.8 hp11 kW
RPM12,000 RPM12,000 RPM
# ATC2424
TaperBBT 30BBT 30
Dimensions1200 x 2500 x 2880 mm1200 x 2500 x 2880 mm
Weight4300 kg4300 kg

MODEL WVM-380U

SPINDLE
Spindle nose type BBT 30
Spindle drive Direct drive
Max. spindle speed 12000 (15000) rpm

MOTOR
MOTOR 5.5 / 7.5 / 11 / 15 kw

TRAVEL
X/Y/Z 380 / 400 / 360 mm

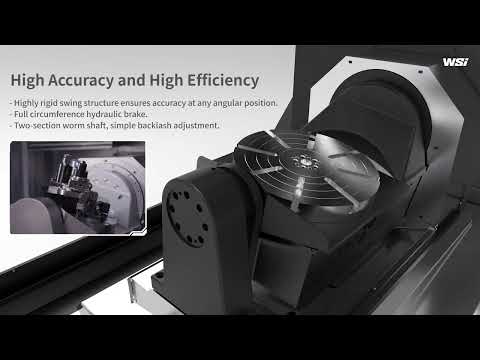

B/C ±120° / 360°

TABLE
Table size Ø320 mm
Max. swing Ø400 mm
Max. load Horiz. (kg) 150 kg
Tilt (kg) 85 kg

TOOL CHANGER
Number of tools 24 (30)T
Max. tool dia. (w/o adjacent tool) Ø60 / Ø80 mm
Max. tool length 200 mm
Max. tool weight 3 kg

OUTLINE DIMENTION
W x H x D 1200 x 2500 x 2880 mm
Weight 4300 kg

Standard Accessories
Fanuc OiMF plus controller
Chip conveyor
Intelligent HMI
Heat exchanger
Fully enclosed splashguard
Automatic lubrication pump
Work lamp
Oil fluid separator

Optional Accessories
High pressure CTS (50/70/105 bar)
Linear scale
Oil mist collector
Workpiece measuring system
Tool measuring system
Tool life management system
Air conditioner for electric cabinet
Air tight detection for workpiece
