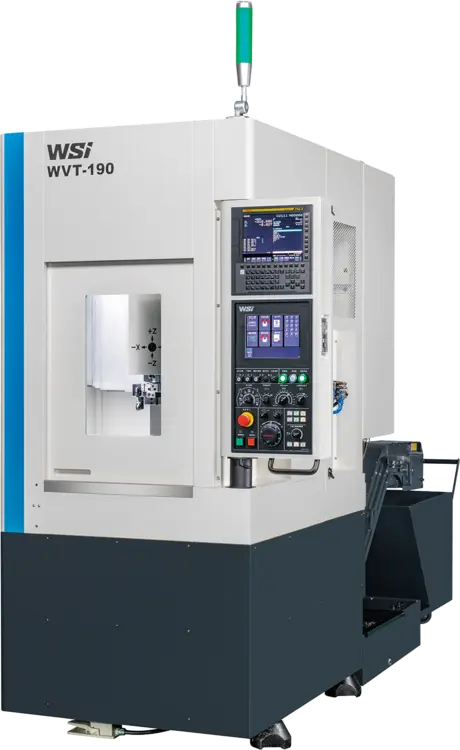

WSI WVT-190 - 2-Axis VTL
ConditionNew
New
Explore new WSI WVT-190K VTL: precision vertical boring with 17.32" swing, 9kW power, 3500 RPM, FANUC control & robust standard features for advanced machining.
MODEL WVT-190K
Max. swing Ø440 mm
Max. turning diameter Ø440 mm
Max. turning height 370 mm
Max. spindle speed 3,500 rpm
Spindle nose A2-8
X / Z-axis travel 235 / 280 mm
Spindle motor 7.5/9 Kw
Turret type Hydraulic servo turret
No. of tools 10T
O.D. tool size □25 mm
I.D. tool size Ø40 mm
Weight 3,400 kg
Standard Equipment
Chip conveyor
Heat exchanger
LED alarm lamp
Intelligent human-machine interface
Fully enclosed splash guard
Work light
MPG handwheel
Coolant device for turret
Auto lubrication pump
Auto door for operator
FANUC 0iT controller
Optional Equipment
WHU intelligent high pressure hydraulic system
Energy saving hydraulic system
Automatic workpiece changer
Oil mist collector
Workpiece measurement system
Tool measurement system
Air gap sensor for workpiece (Festo SOPA)
Tool life management system
Oil fluid separator
High pressure coolant through center 70/120 bar
Air conditioner for electrical cabinet
Automatic lubrication system
Power turret
