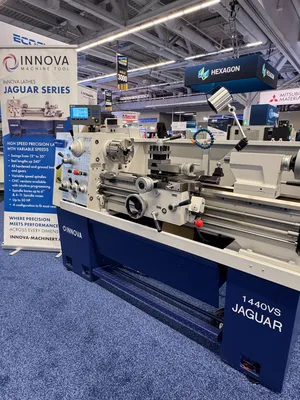

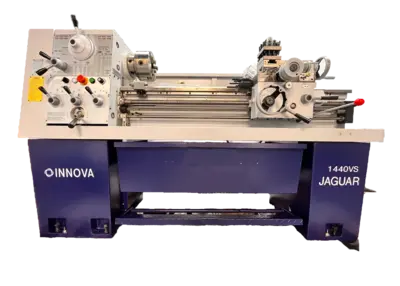

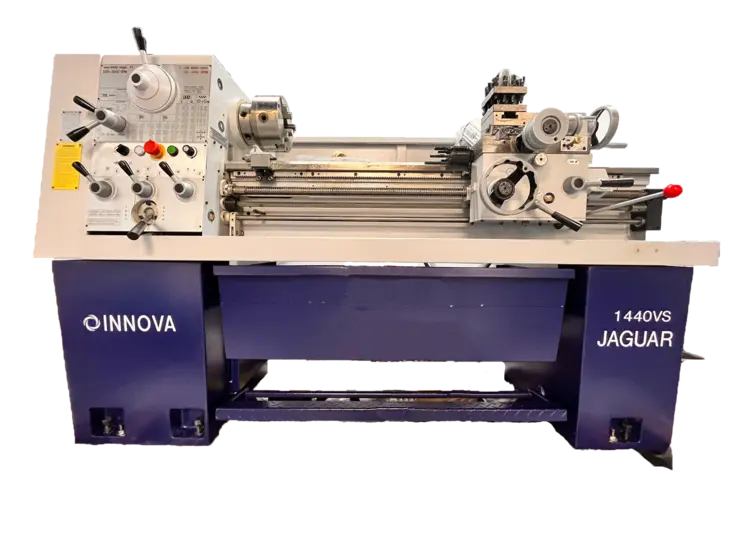

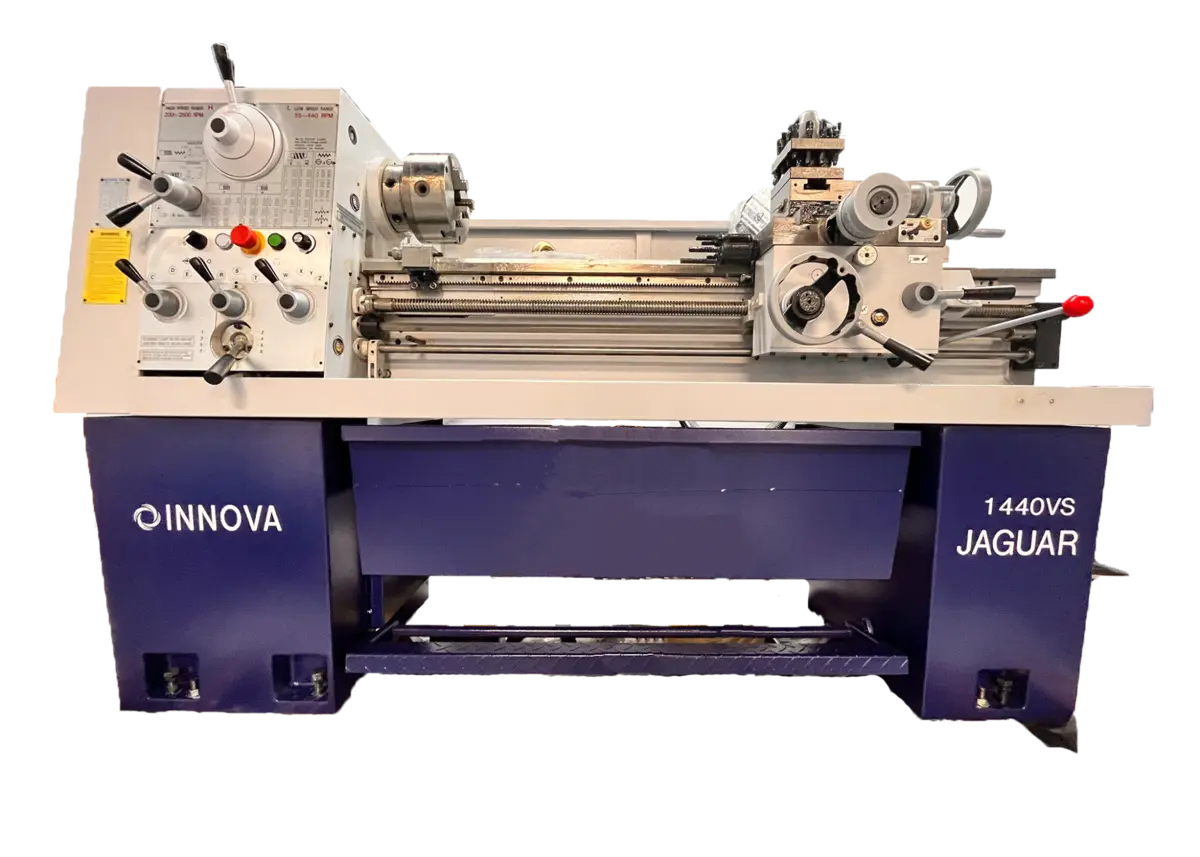

Innova 1440VS Precision Manual Lathe
Have one to sell?
$23,250.00 USD
ConditionNew
4 available
New
The 14" VS Innova Lathe has an integrated inverter and a two-range headstock giving you a wide selection of variable speeds. All gears are hardened and ground and run in a continual bath of oil. The spindle is made of forged, quenched, and tempered steel, with a case-hardened spindle nose and mounted on prevision taper roller bearings. The easy-to-operate control panel is designed for efficiency.
Capacity
Swing over bed 14.25”
Center height 7.1”
Swing in gap 22”
Gap length (in front of face plate) 6”
Swing over cross slide 8.625”
Bed width 10”
Center Distance 30” / 40”
Headstock
Spindle bore 1.625”
Spindle nose D1-5
Spindle taper / Bushing taper 3MT/5MT
No. spindle speeds Variable Drive 2
Spindle Speed Variable Drive 35-2500
No. of longitudinal feeds 24
Range (inches) 0.0012-0.016
Thread and feed box
No. of cross feeds Whitworth 36
Range (inches) 0.0004-0.0053
No. of metric threads 27
Range (mm) 0.4-7
No. of inch threads 36
Range (TPI) 4-72
No. of modular threads 18
Range (mm) 0.3-3.5
No. of diametral pitch threads 21
Range (DP) 8-44
Leadscrew dia./TPI 1.26”/4
Cross slide travel 7.6”
Cross slide width 5.9”
Slide andCarriage
Compound travel 4”
Compound width 4.01”
Max. tool size ¾” x ¾”
Tailstock Quill Diameter 2”
Tailstock Quill Travel 4.75”
Tailstock
Tailstock taper 3MT
Spindle motor (GH&VS) (Hp) 5
Optional 2SP motor (GH) (Hp) 5/3
Motors Coolant Pump motor (Hp) 1/8
