New Innova by GSA CNC-170R | Rotary Tables
ConditionNew
New

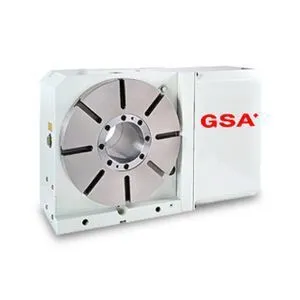

Introducing the GSA CNC-170R Rotary Table, a precision tool in new condition. Features a 170 mm dia., 0.001° indexing, and multiple motor options. Robust 50 kg•m hydro clamp force ensures steadfast operation. Ideal for demanding machining tasks.
Table Dia (mm/inch) 170 / 6.69
Center Height in Vertical (mm / inch) 135 / 5.31
Table Height in Horizontal (mm / inch) 165 / 6.5
Over all Height in Vertical Without Motor Cover (mm / inch) 240 / 9.45
Thru-Hole Dia (mm / inch) 35H7 / 1.37H7
Width of T-slot (mm / inch) 12H7 / 0.47H7
Width of Guide Block (mm / inch) 18h7 / 0.71h7
Servo motor type MELDAS HF-104T
FANUC α4 i
SIEMENS 1FK7060
HEIDENHAIN QSY116C
Gear Ratio 0.104166667
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 22.2
Pneu. clamp force (kg•m) (P:5kg / cm2) 25
Hydro. clamp force (kg•m) (P:20kg / cm2) 50
A combination of high precision bronze / nickel worm wheel and case hardened steel worm screw ensures long term indexing accuracy.
Dual lead worm wheel/worm shaft which allowable easy backlash adjustment.
Double bearing design suitable for heavy cutting.
One piece of faceplate and spindle design which offer rigid construction.
Low Gear ratio design (90:1) which offer high speed feed rate.
Large thru hole design which allowable large work piece going thru spindle.
