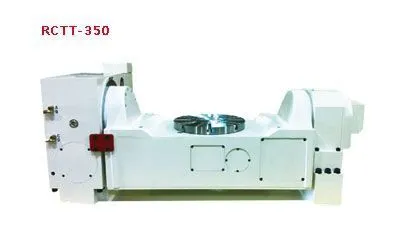

New Innova by GSA RCTT-350 | Rotary Tables - Trunnion

Table Dia (mm/inch) 350
Table center Height in Vertical (mm)

410
Over all Height in Vertical (mm) 603
Thru-Hole Dia (mm)
100H7

Width of T-slot (mm)
12H7

Width of Guide Block (mm)
18h7

Servo motor type Rotating Tilting
MELDAS HF-154T HF-354S
FANUC α8 i α22 i
SIEMENS 1FK7080 1FK7101
HEIDENHAIN QSY155B QSY155F
Gear Ratio 1:72 1:90
Min. Increment(degree) 0.001° 0.001°
Max. R.P.M. (rpm) (motor : 3000 / rpm) 41.6 33.3
Tilting degree -120°~120°
Rotation axis Pneumatic/hydraulic clamping force(kg•m) 150
Indexing Accuracy (sec.) 20"
Repeatability (sec.) 4"
Tilting axis Pneumatic/hydraulic clamping force(kg•m) 200
Indexing Accuracy (sec.) 30"
With encoder ERN 180
N.W (kgs) 1060
Max. Load Vertical W=150 kg

Horizontal W=300 kg

Max. Radial Load F=1750 kg•m
FxL=55 kg•m

FxL=45 kg•m

Max. Working Inertia
39 kg•cm•sec2
