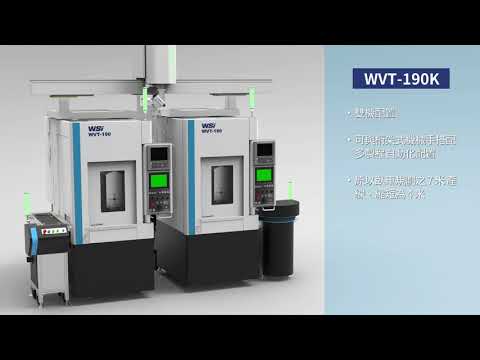

WSI WVT-190 - 2-Axis VTL
Have one to sell?
ConditionNew
1 available
New
Enhance your machining with a new WSI WVT-190 VTL! Features 11.81" swing, 9 kW power, 4,000 RPM, FANUC 0iT controller & more. Efficiency meets innovation in your workshop.
MODEL WVT-190
Max. swing Ø300 mm
Max. turning diameter Ø160 mm
Max. turning height 430 mm
Max. spindle speed 4,000 rpm
Spindle nose A2-6
X / Z-axis travel 355 / 280 mm
Spindle motor 7.5/9 Kw
Turret type Patented gang type turret
No. of tools 8T
O.D. tool size □20 mm
I.D. tool size Ø20 / Ø16 mm
Weight 3,200 kg
Standard Equipment
Chip conveyor
Heat exchanger
LED alarm lamp
Intelligent human-machine interface
Fully enclosed splash guard
Work light
MPG handwheel
Coolant device for turret
Auto lubrication pump
Auto door for operator
FANUC 0iT controller
Optional Equipment
WHU intelligent high pressure hydraulic system
Energy saving hydraulic system
Automatic workpiece changer
Oil mist collector
Workpiece measurement system
Tool measurement system
Air gap sensor for workpiece (Festo SOPA)
Tool life management system
Oil fluid separator
High pressure coolant through center 70/120 bar
Air conditioner for electrical cabinet
Automatic lubrication system
Power turret
