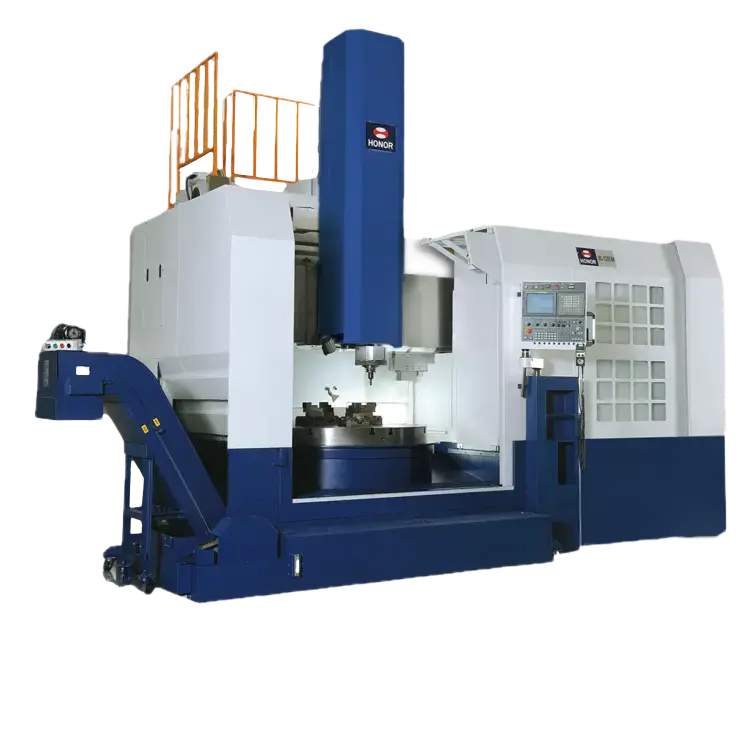

Honor Seiki specializes in vertical turning lathes engineered for accuracy, rigidity, and long-term reliability. Designed to handle a wide range of materials and part sizes, these machines are built for real-world production—delivering consistent results across every job.
Through Innova, Honor Seiki machines are backed with local service, application support, and long-term reliability.
Designed for Stable, Accurate Machining
Rigid machine construction for reduced vibration
High-precision spindles for consistent finishes
Efficient chip management for cleaner operation
Built for heavy-duty and continuous cutting
User-friendly controls for easy operation
WSI WVT-410T
Engineered Platforms for Real Production
5-Axis Machining Centers (WVM Series)
Compact yet powerful platforms designed for complex geometries, tight tolerances, and high-speed contouring. These machines combine flexibility with production-level performance.
Compact 5-Axis Capability with Big-Machine Performance
The WVM Series combines precision, rigidity, and flexibility in a compact 5-axis machining platform. Designed for high-speed contouring, tight-tolerance work, and continuous operation, each model offers a different balance of spindle taper, tool capacity, and table size to fit your production needs.
Key Features
High-Speed, High-Precision Spindles — 15,000 to 40,000 rpm with BBT-30 / HSK-E40 to HSK-A63 interfaces.
Compact Footprint, Heavy Casting — Small overall size for shop efficiency, but built with large cast iron bases for thermal stability.
Fast Tool Changes — Tool-to-tool times as quick as 0.8 seconds and chip-to-chip in under 3 seconds.
Advanced Control Options — Fanuc 0i-MF or 31i-MF Plus controllers for 4+1 or full 5-axis simultaneous machining.
Exceptional Accuracy — ±0.005 mm positioning and ±0.006–0.02 mm repeatability (ISO 230-2).
Models
WVM-380U – Compact 5-axis machining center with 24–40 tool ATC and high-speed BBT-30/HSK-E40 spindle.
WVM-380UK – Mid-size platform with BBT-40/HSK-A63 spindle, 32–40 tool ATC, and larger work envelope.
WVM-410UT – Extended table travel and 40–60 tool ATC capacity, ideal for complex parts and multi-face machining.
WSI WVT-190
Vertical Turning Lathes (WVT Series)
Space-efficient turning platforms built for precision and heavy cutting, offering exceptional accuracy and repeatability for small to mid-size components.
Compact, Rigid, and Built for Production Turning
The WVT Series delivers the power of a vertical turning lathe in a space-saving design, ideal for precision components and small to medium workpieces. With spindle options up to 4,500 rpm and heavy-duty cast iron construction, these machines handle high cutting loads while maintaining micron-level precision.
Key Features
Exceptional Accuracy — ±0.005 mm (±0.00020″) positioning with repeatability of ±0.006–0.02 mm (ISO 230-2).
High-Speed Spindles — 3,000–4,500 rpm, available in A2-6 or A2-8 configurations.
Compact Footprint — Fits where traditional horizontal lathes can’t, reducing floor space requirements.WVT190 with Gantry Bar Loader
Optional Live Tooling and CTS — Increases flexibility for complex turning and milling operations.
Proven Fanuc Control — Equipped with Fanuc 0i-TF for dependable operation and easy integration.
Models
WVT-190 – Compact VTL designed for precision turning, featuring a 40" table and 8" chuck.
WVT-190K – Adds increased torque and enhanced rigidity for heavy-duty cutting.
WVT-360 – Larger swing capacity for bigger parts, while maintaining the same compact platform and precision.
From multi-axis milling to production turning, WSI machines are designed to reduce setups, improve throughput, and maintain micron-level precision.
Manufactured for North America. Backed by INNOVA.
The INNOVA by WSI collaboration ensures every machine is aligned with real-world shop requirements—automation readiness, serviceability, and long-term support.
With North American distribution, application support, and service through Innova Machine Tool, customers gain more than a machine—they gain a long-term production partner.
