5-Axis Machining Centers (WVM Series)

Compact yet powerful platforms designed for complex geometries, tight tolerances, and high-speed contouring. These machines combine flexibility with production-level performance.

Compact 5-Axis Capability with Big-Machine Performance

The WVM Series combines precision, rigidity, and flexibility in a compact 5-axis machining platform. Designed for high-speed contouring, tight-tolerance work, and continuous operation, each model offers a different balance of spindle taper, tool capacity, and table size to fit your production needs.

Key Features

• High-Speed, High-Precision Spindles — 15,000 to 40,000 rpm with BBT-30 / HSK-E40 to HSK-A63 interfaces.
• Compact Footprint, Heavy Casting — Small overall size for shop efficiency, but built with large cast iron bases for thermal stability.
• Fast Tool Changes — Tool-to-tool times as quick as 0.8 seconds and chip-to-chip in under 3 seconds.
• Advanced Control Options — Fanuc 0i-MF or 31i-MF Plus controllers for 4+1 or full 5-axis simultaneous machining.
• Exceptional Accuracy — ±0.005 mm positioning and ±0.006–0.02 mm repeatability (ISO 230-2).


Models

• WVM-380U – Compact 5-axis machining center with 24–40 tool ATC and high-speed BBT-30/HSK-E40 spindle.
• WVM-380UK – Mid-size platform with BBT-40/HSK-A63 spindle, 32–40 tool ATC, and larger work envelope.

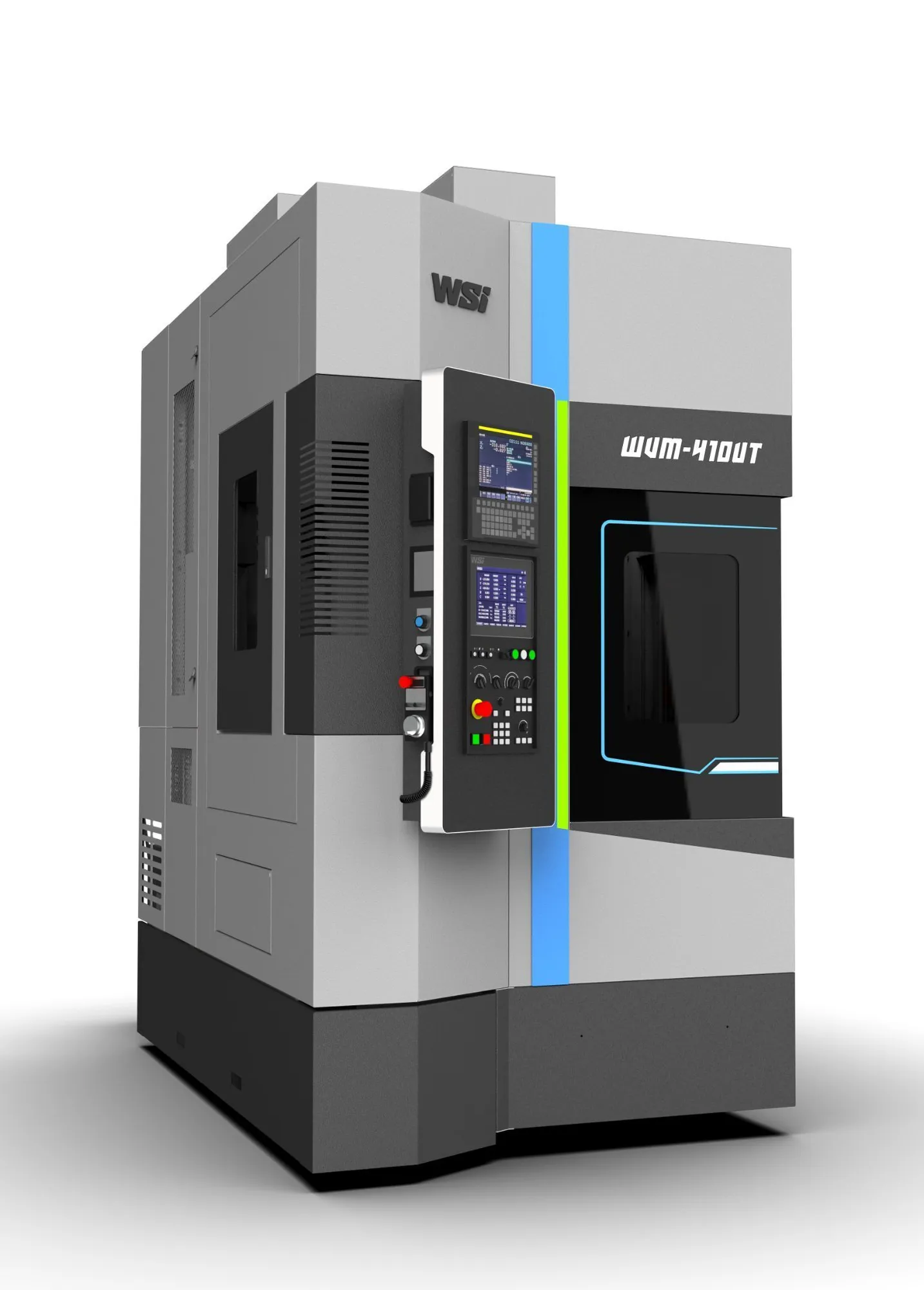

• WVM-410UT – Extended table travel and 40–60 tool ATC capacity, ideal for complex parts and multi-face machining.
