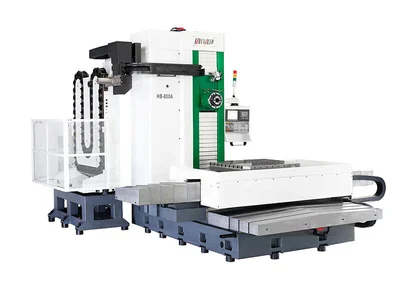

INNOVA HB-800A CNC Horizontal Boring & Milling Machine

TABLE
Table size 1,000 x 1,000 mm (39-3/8 x 39-3/8 inch)
T slot (Wide x No. x Pitch) 22H8 x 9 x 100 mm (0.86 x 9 x 4 inch)
Max load capacity 3,000 kg (6,600 lbs)
Min. indexing unit 1° (360 divisions) deg
B axis rapid feed 4 rpm
Table height from ground 1,103 mm (43-7/16 inch)

CAPACITY
Y axis travel 1,200 mm (47-1/4 inch)
X axis travel 2,000 mm (78-3/4 inch)
Z axis travel 1,200 mm (47-1/4 inch)
W axis travel -
Spindle nose to table center 275 ~ 1,475 mm (10-13/16 ~ 58 inch)
Spindle center to table top 0 ~ 1,200 mm (0 ~ 47-1/4 inch)

SPINDLE
Spindle nose BT50
Spindle diameter -
Output max. -
Spindle speed (2 ranges)
- Lo-speed 30 ~ 1300 rpm, Hi-speed 1,301 ~ 3,000 rpm

FEED
Rapid X, Y, Z, W axis - 15 / 12 / 15 / - m/min
Rapid table rotation 4 rpm
Feed rate of X, Y, Z axis 1 ~ 6,000 m/min
Feed rate of W axis - mm/min
X, Y, Z axis ballscrew (Dia. / Pitch) 50 / 10 mm
W axis ballscrew (Dia. /Pitch) -

A.T.C.
Magazine capacity 60 pcs
Pull stud -
Max. tool length 400 mm
Max. tool weight 25 kg
Max. tool diameter Ø125 / Ø250 (w/o adjacent tool) mm
Tool selection -
Tool change time(approx) 15 sec

MOTORS
Spindle motor 15 / 18.5 kW
Servo motor for X, Y, Z, B, 7/7/7/4 kW
Centralized lubrication pump 150 W
Hydraulic pump 2.2 kW
Spindle oil cooler pump 0.75 kW
Coolantpump 1 kW

GENERAL INFORMATION
Pneumatic required 6 kg/cm2
Coolant tank 350 L
Machine dimension 5,030 x 5,100 x 3,250 mm
Machine weight (Approx.) 18,000 kg (39,600 lbs)
CNC control Fanuc 0i-MF
