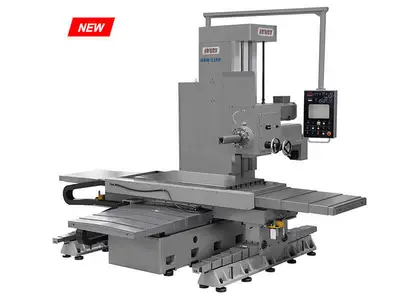

INNOVA HBM-110P Manual Horizontal Boring & Milling Machine

CAPACITY
Table travel (X axis) 1,800 mm (70-13/16 inch)
Head travel ( Y axis) 1,000 mm (39-3/8 inch)
Table travel (Z axis) 1,250 mm (49-3/16 inch)
W axis (Spindle axial) 400 mm (15-3/4 inch)
Spindle center to table top 240~1,240 mm (9-3/7~48-4/5 inch)
Spindle end to table center 380~1,630 mm (15~64-1/5 inch)

TABLE
Table size overall 1,500x800 mm (59 x 31-1/2 inch)
T slot (Wide x No. x Pitch) 20x7x100 mm (0.78x7x3-7/8 inch)
Table indexing (360 degree) -
Table load capacity max. 3,000 kg (6,620 lbs)

SPINDLE HEAD
Spindle nose ISO R297 No.50
Spindle diameter 110
Spindle speed
- 50Hz; 12 steps, 20 ~ 1,000 rpm
- 60Hz; 12 steps , 20 ~ 1,000 rpm

FEED / RAPID
X, Y, Z rapid
- 50Hz mm/min, 2,800 (110-1/4 ipm)
-60Hz mm/min, 2,800 (110-1/4 ipm)
W rapid mm/min -
X, Y, Z auto feed
- 50Hz mm/min, 3 ~ 950 (1/8~37-3/8 ipm)
- 60Hz mm/min, 3 ~ 950 (1/8~37-3/8 ipm)
W feed mm/min -
Change of feeds Variable speed
Z axis boring feeds (12 steps) -

MOTORS
Spindle motor AC15 kW
Feed motor -
Feed motor for X, Y, Z axis (Servo) AC2.9 kW
Feed motor for W axis (Servo) 1.3 kW
Lube pump for headstock AC0.18-4P kW
Lube pump for slideways AC3.5 W
Coolant pump AC0.2-4P kW
Hydraulic pump for axis clamp AC 1.5 kW(2HP)-4P

MACHINE SIZE
Machine height 3,175 mm (125 inch)
Floor space (Longitudinal x cross) 3,874 x 4,373 mm (152-1/2x172 inch)
Net weight (Approx.) 12,500 kg (27,560 lbs)
Standard color -
